Pump Stations

Versatile pump stations to move wastewater to higher elevations

Whether you are developing a single house, factory, or large housing estate, Molloy design and manufacture pump stations to suit.

Packaged or tailored pumping stations

Larger designs to Irish Water specifications

... ...

Packaged pump stations

Pump stations delivered with the necessary components assembled and pre-fitted in the tank.

Tailored systems

Our experienced engineers prepare the best solution for your projects specific needs.

Irish Water specifications

Certain pump stations may be managed by Irish Water at a future date. We can prepare designs to meet these specs.

Packaged pump stations

Pump stations for clear, surface and foul water. View a sample of our packaged pump stations below, and get in touch to speak with an engineer about your project.

Molloy Precast Concrete tank

Includes inlet and outlet pipe. B125 or D400 ductile iron covers are available.

Outdoor or indoor kiosk

Outdoor galvanised steel kiosk or indoor wall mountable plastic kiosk.

Surface and foul water pumps

Vortex, Channel or Macerating options.

Control panel

Single pump or duty / standby / assist control panel with beacon and BMS connection. GSM dial out alarm option.

Components selected and delivered to site assembled.

Tanks can be modified to suit specific invert levels and pipe sizes.

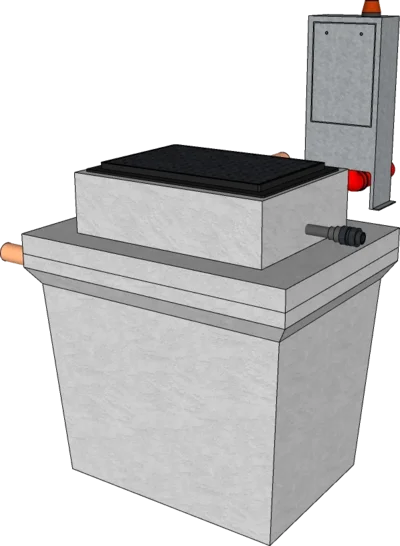

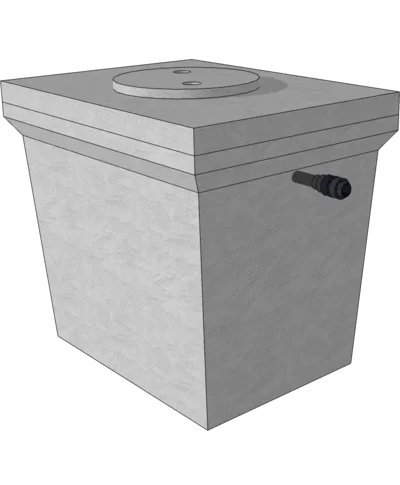

J Domestic Pump Station

...
Volume:
850 litres
Effective volume:
600 litres
Drawing ID:
PS-J-05-191018

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

J Pump Station

...
Volume:
850 litres
Effective volume:
600 litres
Drawing ID:
PS-J-009-300420

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

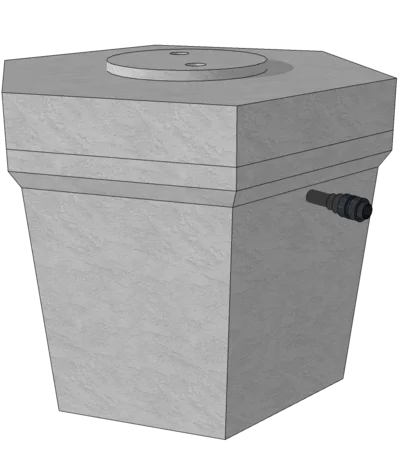

H 1.2 Domestic Pump Station

...
Volume:
1200 litres
Effective volume:
680 litres
Drawing ID:
PS-H1.2-01-070420

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

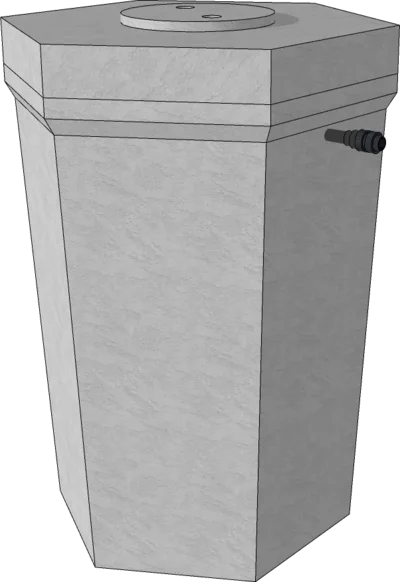

H Domestic Pump Station

...
Volume:
2500 litres
Effective volume:
1820 litres
Drawing ID:
PS-H-01-070420

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

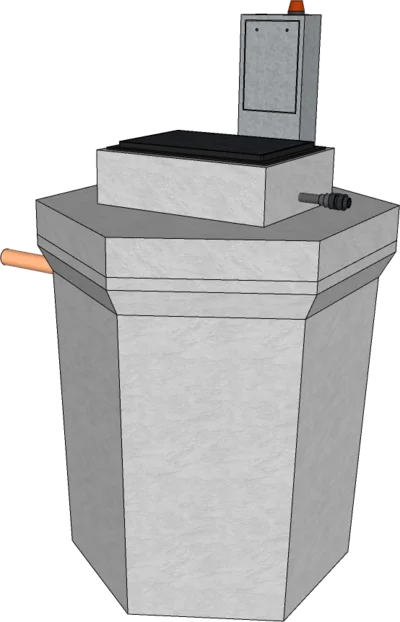

H+ Pump Station

...
Volume:
3500 litres
Effective volume:
2880 litres
Drawing ID:
PS-H+-043-090320

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

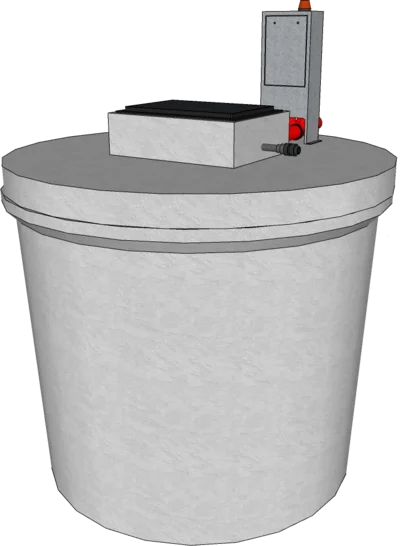

S+ Pump Station

...
Volume:
7000 litres
Effective volume:
5440 litres
Drawing ID:
PS-S+-082-120520

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

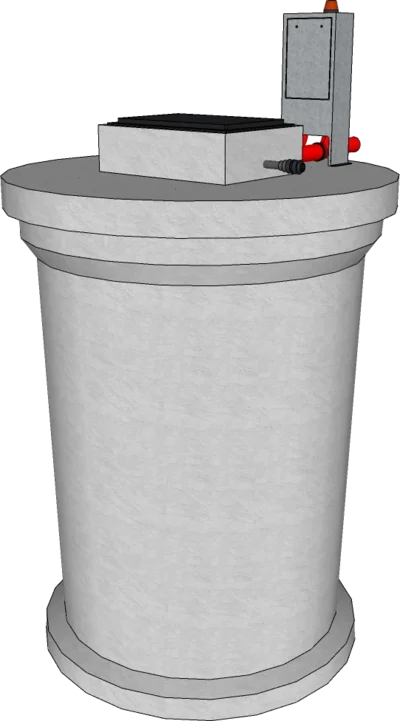

P3 Pump Station

...
Volume:
8500 litres
Effective volume:
6000 litres
Drawing ID:
PS-P3-013-120520

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

L Pump Station

...
Volume:
10000 litres
Effective volume:
7100 litres
Drawing ID:
PS-L-063-120520

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

2S+ Pump Station

...
Volume:
14000 litres
Effective volume:
10880 litres
Drawing ID:
PS-S+-083-130520

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

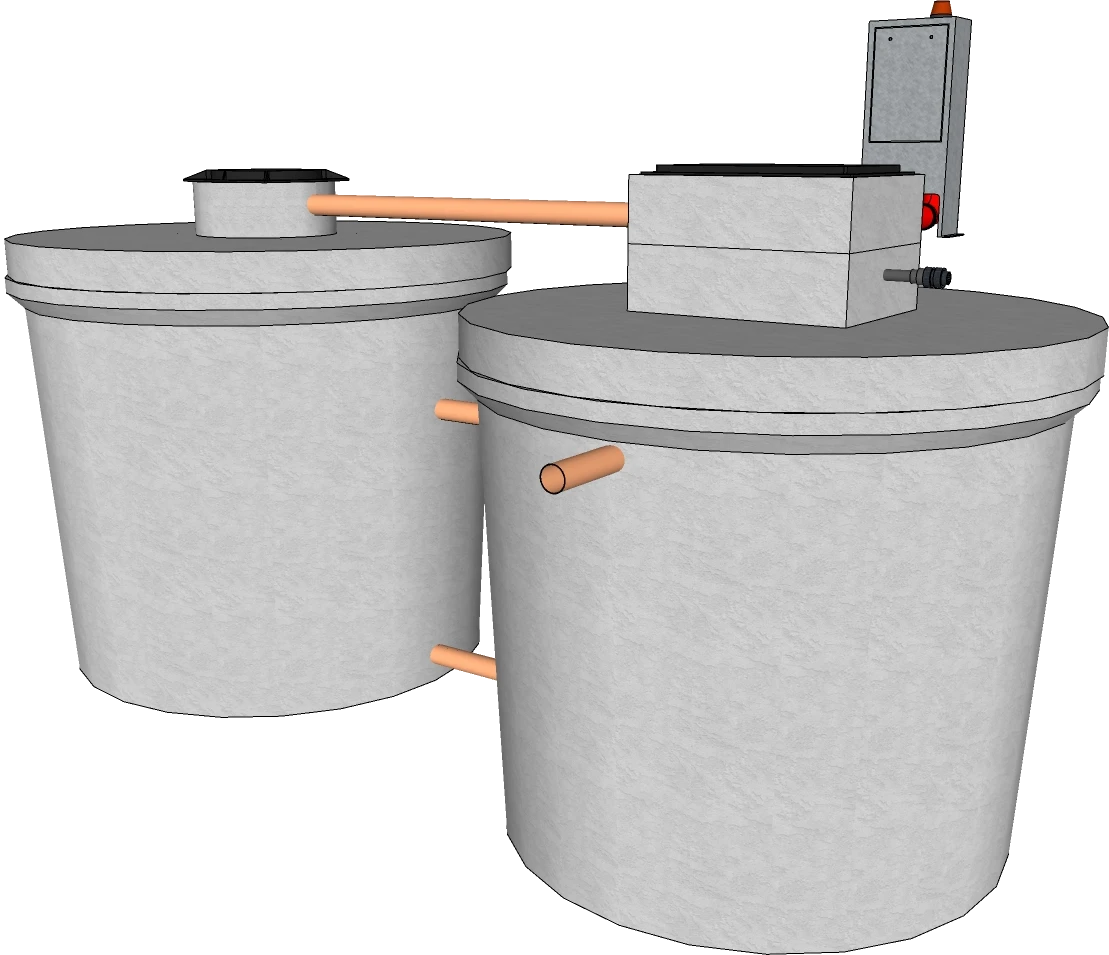

2L Pump Station

...
Volume:
20000 litres
Effective volume:
14200 litres
Drawing ID:
PS-L-064-130520

Components selected to suit and delivered to site assembled

Tanks can be modified to suit your invert levels and pipe sizes

Tailored pump stations

In preparing a design suitable for your projects needs and budget, our experienced engineers consider the following:

  • Application and storage capacity
  • Rising main length and static head
  • Inlet pipe size and invert level
  • Rising main length and static head
  • General orientation

Our designers then select a suitable pump, size the rising main diameter and produce a drawing of proposed system to match your requirements.

Irish Water Specifications

Irish Water (IW) have a detailed specification for pump stations which they may take over the management of at a future date. Our experienced design team work within these specifications and can prepare a detailed proposal for your project ready for IW submission, to include the following:

Site specific drawing

Selected pump datasheet and friction calculations

Details and drawings for the req. WIMES control panel

Floatation calculations

Datasheets for all main components

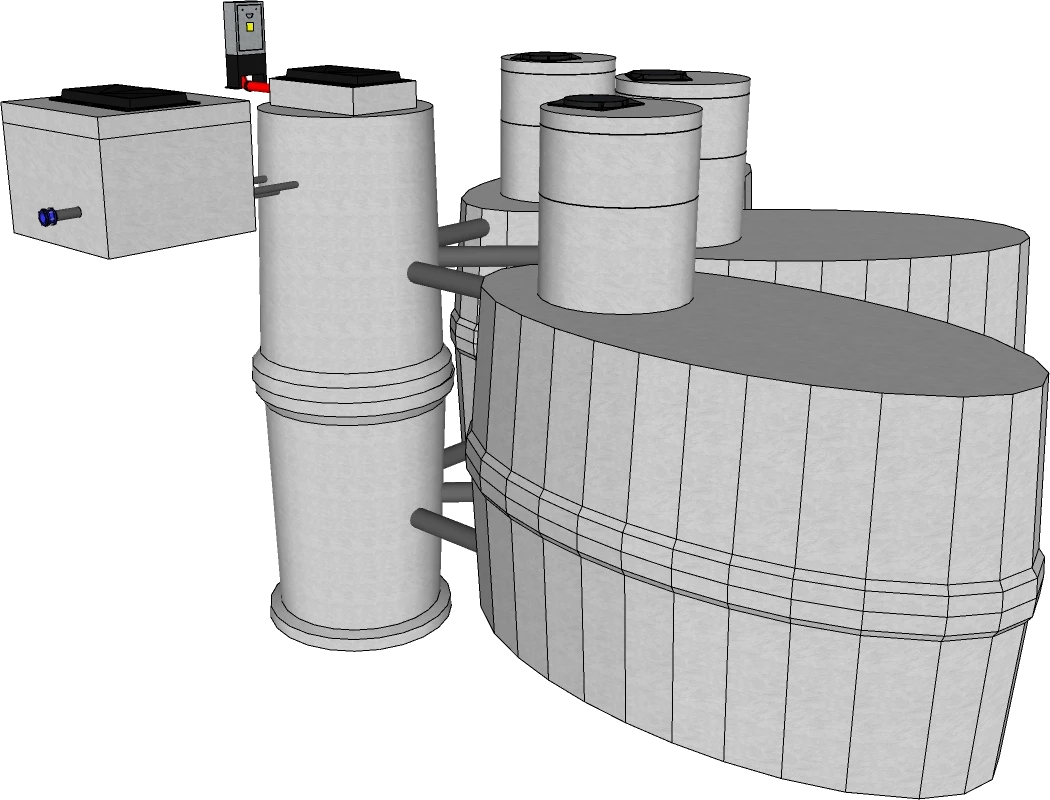

Bespoke PS example Pump Station

...
Usable capacity:
120m3
Pump sump:
P6 tank
Tank:
3 x R tank
Drawing ID:
PS-P6-011-130520

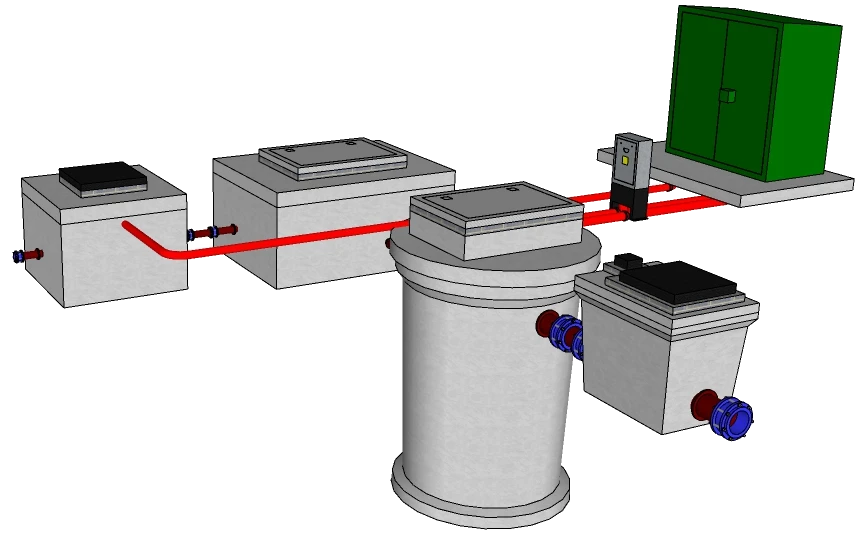

Irish Water – Sample A Pump Station

...
Usable capacity:
5.5m3
Equiv. no. of houses:
12
Pump sump:
P3 tank
Drawing ID:
PS-P3-010-050320

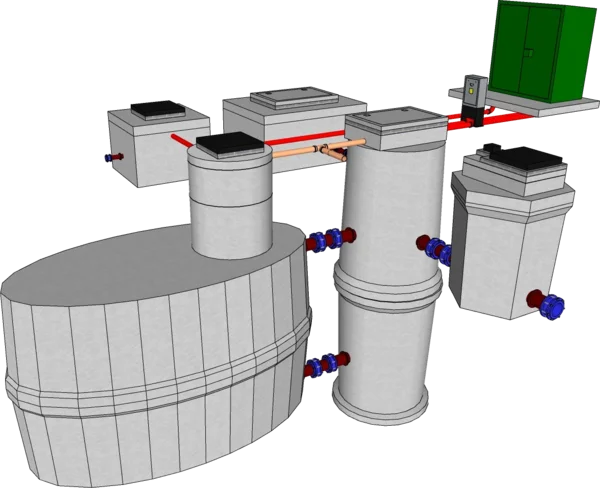

Irish Water – Sample B Pump Station

...
Usable capacity:
45.6m3
Equiv. no. of houses:
102
Pump sump:
P6 tank
Tank:
R tank
Drawing ID:
PS-P6-008-050520

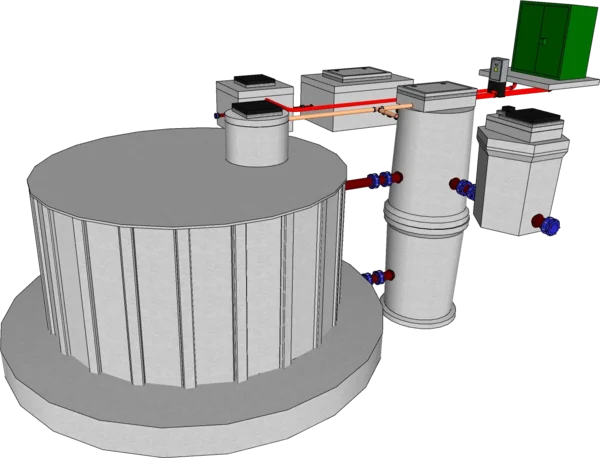

Irish Water – Sample C Pump Station

...
Equiv. no. of houses:
e.g. 150 – 2000 houses
Pump sump:
P6 tank
Tank:
Sectional tank
Drawing ID:
PS-P6-010-130520

Sectional tanks provide flexibility for emergency storage, for example in larger housing estates with 150 – 2,000 homes

Questions about sewage pumping stations?

Get in touch and we can help.
