Oil - Water Separators

Intercept fuel / oil before it enters sewer or drainage

Designed to meet EN858 standards, Molloy's range of interceptors each use high quality precast concrete tanks. The interceptors are designed for a wide variety of uses:

Full retention, By-pass and Forecourt separators

Flexible and robust designs, easy to maintain

... ... ...
...

Full retention

Full retention separators treat the full flow that can be delivered by the drainage system.

...

By-pass

Allows a flow in excess of maximum permissible effluent flow to bypass the interceptor.

...

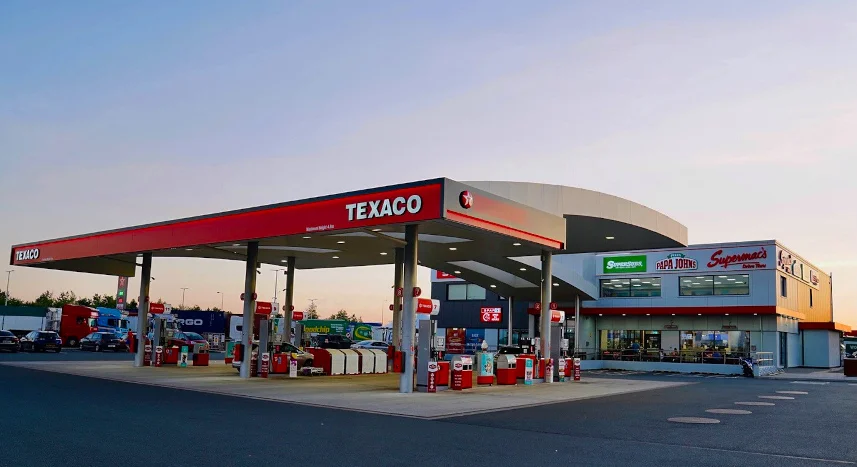

Forecourt

Specified to retain on site the maximum spillage likely to occur on a petrol filling station.

Full retention interceptor

Aswaclear® NS03

...
Drawing ID:
FR_NS03_H_140818
Nominal flow:
3 l/s
Drainage area:
170 m2
Silt storage capacity:
890 litres
Oil storage capacity:
340 litres

Aswaclear® NS06

...
Drawing ID:
FR_NS06_H_140818
Nominal flow:
6 l/s
Drainage area:
335 m2
Silt storage capacity:
890 litres
Oil storage capacity:
340 litres

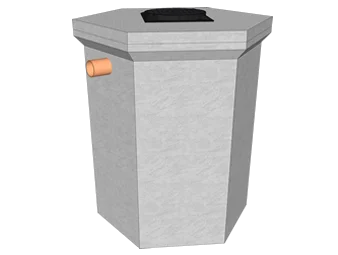

Aswaclear® NS10

...
Drawing ID:
FR_NS10_H+_140818
Nominal flow:
10 l/s
Drainage area:
555 m2
Silt storage capacity:
1370 litres
Oil storage capacity:
460 litres

Aswaclear® NS15

...
Drawing ID:
FR_NS15_S_210818
Nominal flow:
15 l/s
Drainage area:
833 m2
Silt storage capacity:
2170 litres
Oil storage capacity:
770 litres

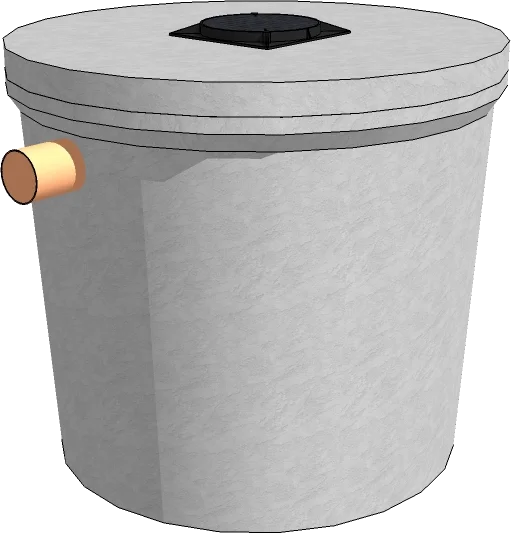

Aswaclear® NS20

...
Drawing ID:
FR_NS20_S_210818
Nominal flow:
20 l/s
Drainage area:
1110 m2
Silt storage capacity:
2170 litres
Oil storage capacity:
770 litres

Aswaclear® NS30

...
Drawing ID:
FR_NS30_L_210818
Nominal flow:
30 l/s
Drainage area:
1666 m2
Silt storage capacity:
4100 litres
Oil storage capacity:
1200 litres

Aswaclear® NS40

...
Drawing ID:
FR_NS40_2S+_210818
Nominal flow:
40 l/s
Drainage area:
2222 m2
Silt storage capacity:
4000 litres
Oil storage capacity:
1910 litres

Aswaclear® NS50

...
Drawing ID:
FR_NS50_2C_210818
Nominal flow:
50 l/s
Drainage area:
2777 m2
Silt storage capacity:
5000 litres
Oil storage capacity:
2000 litres

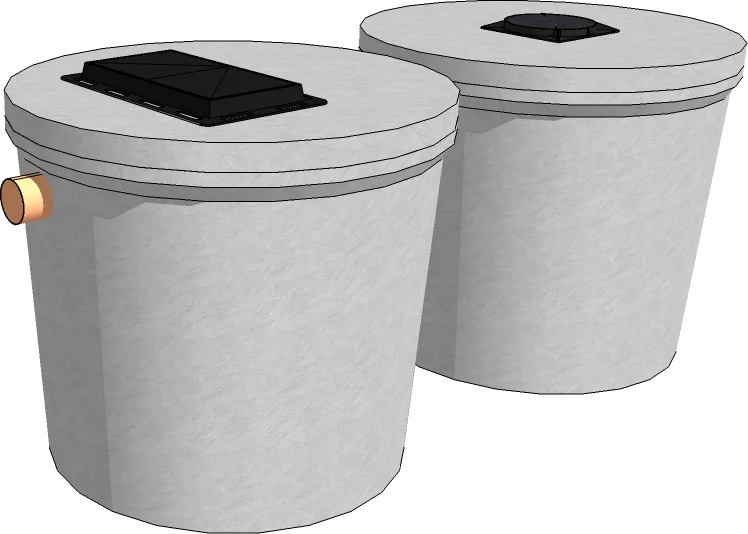

Aswaclear® NS70

...
Drawing ID:
FR_NS70_2L_250219
Nominal flow:
70 l/s
Drainage area:
3888 m2
Silt storage capacity:
8200 litres
Oil storage capacity:
2400 litres

Aswaclear® NS80

...
Drawing ID:
FR_NS80_2L_220818
Nominal flow:
80 l/s
Drainage area:
4444 m2
Silt storage capacity:
8200 litres
Oil storage capacity:
2400 litres

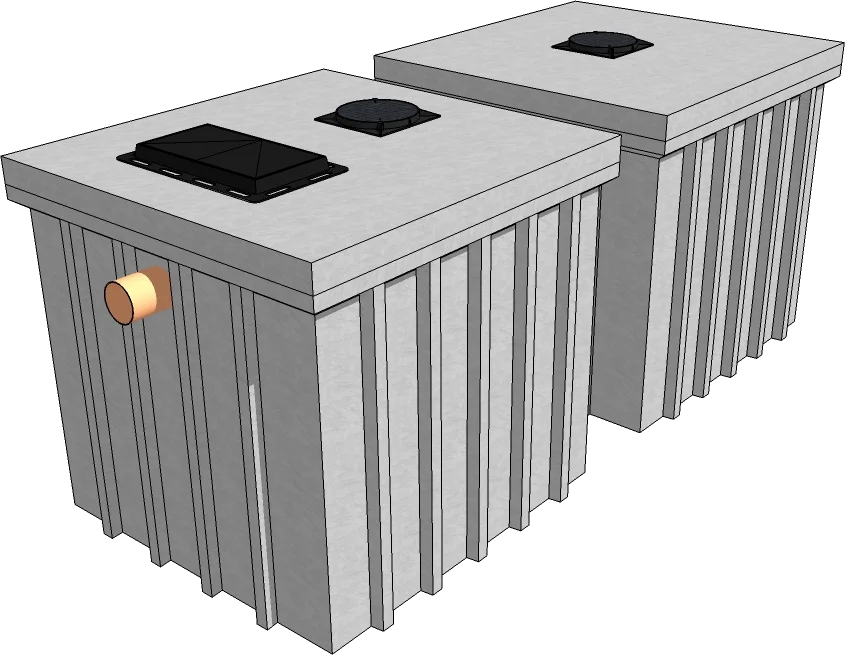

Aswaclear® NS100

...
Drawing ID:
FR_NS100_2D_220818
Nominal flow:
100 l/s
Drainage area:
5555 m2
Silt storage capacity:
12000 litres
Oil storage capacity:
3100 litres

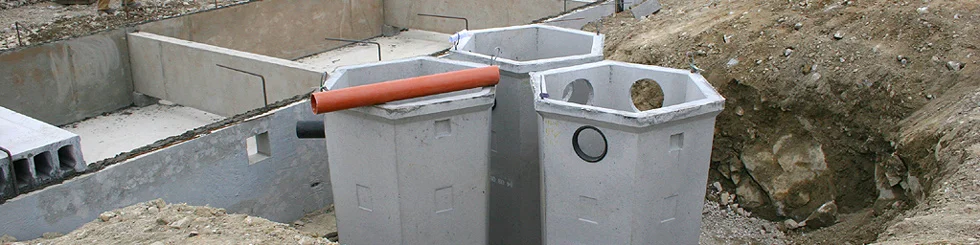

Bypass interceptor

Aswaclear® NSB03

...
Drawing ID:
NSB03-HH-130818
Nominal flow:
3 l/s
Peak flow:
30 l/s
Drainage area:
1666 m2
Silt storage capacity:
1600 litres
Oil storage capacity:
320 litres

Aswaclear® NSB06

...
Drawing ID:
NSB06-HH-010219
Nominal flow:
6 l/s
Peak flow:
60 l/s
Drainage area:
3333 m2
Silt storage capacity:
1600 litres
Oil storage capacity:
320 litres

Aswaclear® NSB10

...
Drawing ID:
NSB10-SH-010219
Nominal flow:
10 l/s
Peak flow:
100 l/s
Drainage area:
5555 m2
Silt storage capacity:
2860 litres
Oil storage capacity:
320 litres

Aswaclear® NSB15

...
Drawing ID:
NSB15-S+H+-010219
Nominal flow:
15 l/s
Peak flow:
150 l/s
Drainage area:
8333 m2
Silt storage capacity:
3310 litres
Oil storage capacity:
455 litres

Aswaclear® NSB20

...
Drawing ID:
NSB20-S+H+-010219
Nominal flow:
20 l/s
Peak flow:
200 l/s
Drainage area:
11111 m2
Silt storage capacity:
3730 litres
Oil storage capacity:
445 litres

Aswaclear® NSB30

...
Drawing ID:
NSB30-2S+-010219
Nominal flow:
30 l/s
Peak flow:
300 l/s
Drainage area:
16666 m2
Silt storage capacity:
4850 litres
Oil storage capacity:
950 litres

Aswaclear® NSB40

...
Drawing ID:
NSB40-2S+-010219
Nominal flow:
40 l/s
Peak flow:
400 l/s
Drainage area:
22222 m2
Silt storage capacity:
4850 litres
Oil storage capacity:
1200 litres

Aswaclear® NSB50

...
Drawing ID:
NSB50-2L-150219
Nominal flow:
50 l/s
Peak flow:
500 l/s
Drainage area:
27777 m2
Silt storage capacity:
7320 litres
Oil storage capacity:
1200 litres

Aswaclear® NSB70

...
Drawing ID:
NSB70-2L-150219
Nominal flow:
70 l/s
Peak flow:
700 l/s
Drainage area:
38888 m2
Silt storage capacity:
7000 litres
Oil storage capacity:
1500 litres

Aswaclear® NSB80

...
Drawing ID:
NSB80-LD-201219
Nominal flow:
80 l/s
Peak flow:
800 l/s
Drainage area:
44444 m2
Silt storage capacity:
8000 litres
Oil storage capacity:
1500 litres

Forecourt interceptor

Aswaclear® NS06

...
Drawing ID:
FC_NS06-LH-121018
Nominal flow:
6 l/s
Drainage area:
335 m2
Silt storage capacity:
1000 litres
Oil storage capacity:
7600 litres

Aswaclear® NS10

...
Drawing ID:
FC_NS10-LH-121018
Nominal flow:
10 l/s
Drainage area:
555 m2
Silt storage capacity:
1000 litres
Oil storage capacity:
7600 litres
